LAP-1000X/2000X

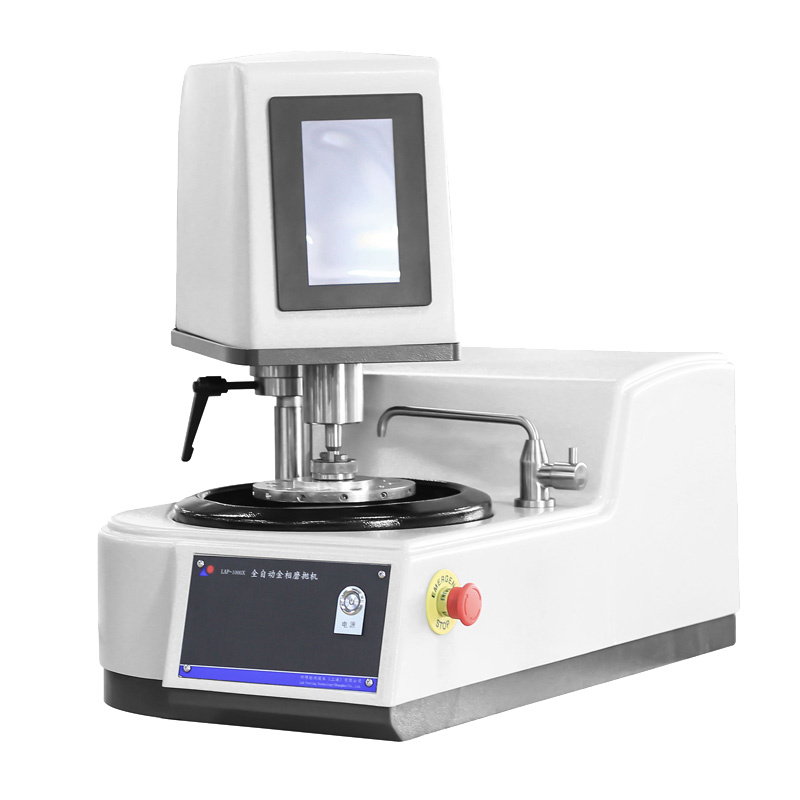

LAPP-1000X/2000X pencil lead hardness test sample grinding and polishing machine is a special equipment for grinding and polishing pencil lead hardness test samples. After grinding and polishing by this equipment, the polished surface of multiple samples is bright and perpendicular to the length direction of the lead, which can be directly used for hardness measurement.

Main features

1. Quick clamp, one-time quick clamping of pencil cores of different diameters, the clamp can be used for both grinding and polishing processes, and can be directly used for hardness measurement;

2. Six samples can be prepared at the same time, and the grinding and polishing surface is perpendicular to the axis of the pencil core;

3. The loading pressure of sample preparation can be adjusted and automatically controlled;

4. Sample grinding layer thickness control: the amount of sample grinding is accurately controlled according to user settings, and it is ground to the specified position;

5. The entire grinding and polishing process can be completed by quickly replacing sandpaper or polishing cloth to ensure the complete plane of each sample;

6. Easily replace polishing materials to complete the grinding and fine polishing of various samples;

7. Independently control the grinding and polishing disc and sample disc: speed, grinding and polishing time, rotation direction, and all other grinding and polishing parameters;

8. Touch screen interface: grinding and polishing parameters are easy to set, status display is intuitive, and operation is simple.
