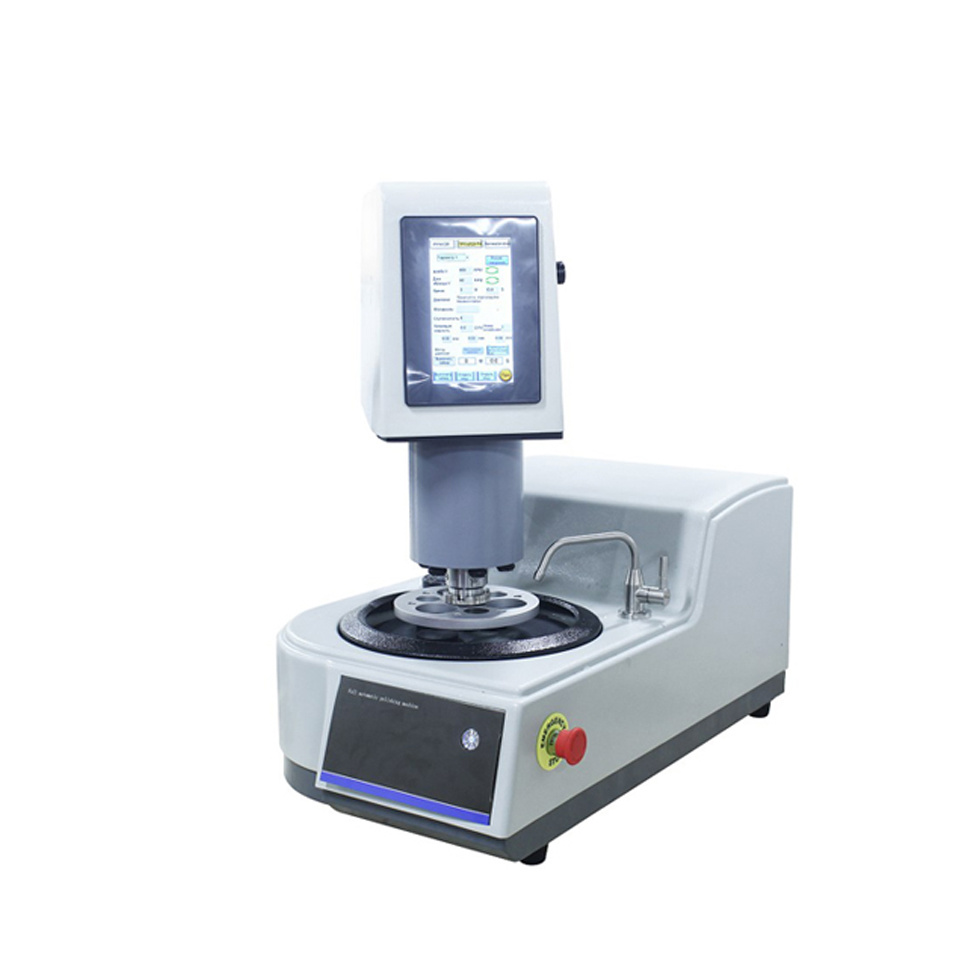

LAP-1000SN/2000SN

LAP-1000SN/LAP-2000SN fully automatic metallographic grinding and polishing machine supports:
Multiple samples are loaded independently
Six samples can be clamped at one time, and a four-channel automatic dropper (optional) can be configured to automatically complete the grinding and polishing process.

Product Features
1.LAP-1000SN/LAP-2000SN fully automatic single and double disc metallographic grinding and polishing machine supports multiple samples to be loaded independently
2. Grinding and polishing disc and sample disc: set and run all grinding and polishing parameters such as speed, grinding and polishing time, rotation direction, water valve closing, etc., and automatically save and facilitate call;
3. Adopt PLC + 1KW high-power motor
4. Two (LAP-1000SN is a single motor) independent 1KW high-power motors are used with large torque. Regardless of the speed, the torque is large and constant;
5. Wide speed range, from 5 rpm to 1000 rpm (maximum 1500 rpm);
6. Quick start and stop of the turntable, the turntable can stop rotating in 2 seconds;
7. All grinding and polishing parameters such as speed, grinding and polishing time, rotation direction, water valve closing, etc. are automatically saved and convenient to call;
8. Imported PLC brand, reliable quality;
9. Touch screen interface, easy to set grinding and polishing parameters;
10. 4 working modes:
1) Fully automatic mode:
According to the sample material or the user's habits, it can be set 1) Set and call: 99 sets of processes (processes), each set of processes can contain 10 process parameters (each process has process parameters for a certain grinding or polishing process: grinding disc and grinding head rotation speed, grinding and polishing time...)
2) Single process mode:
According to each step of the grinding and polishing process, 30 process parameters can be set and called: grinding disc and grinding head rotation speed, grinding and polishing time, water on and off...
3) According to the prepared material mode:
According to the type of sample material, select the corresponding grinding and polishing process parameters
4) Manual mode:
Operate a certain function of the equipment separately
11.Store 100 processes, which can be imported and exported;
12. Sample grinding layer thickness control: Accurately control the amount of sample grinding to the specified position (optional);
13. 4 or 6 channel automatic dripper (optional):
1) The main machine of the grinding and polishing machine controls the 4 channel dripper, and the dripping type and speed are all instructed by the grinding and polishing machine
2) Three working modes of the dripper: manual, online, and fully automatic
3) Connected with the polishing machine, dripping according to the grinding and polishing parameters set by the grinding and polishing machine; each mode can be set independently: dripping speed, dripping time
14. 300 processes are stored in the U disk, which can be imported and exported;
15. The electromagnetic automatic locking of the grinding head replaces the manual grinding head locking wrench, which is more convenient;
16. Easily replace the magnetic anti-sticking disc to complete all processes such as rough and fine grinding and rough and fine polishing of various samples. One disc is equivalent to N discs;
17. Chinese/English interface switching.
18. Mobile terminal remote control operation (optional).
