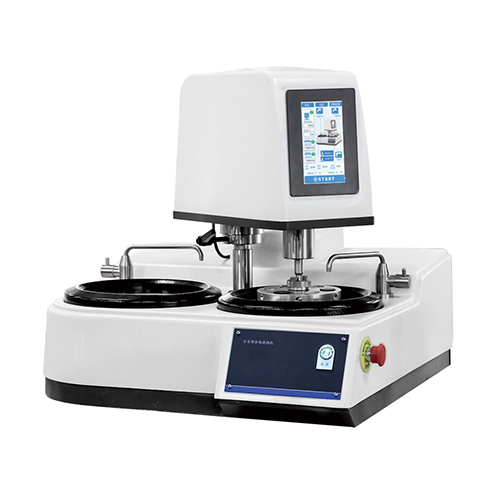

LAP-1000S/2000S

PRODUCT ADVANTAGES

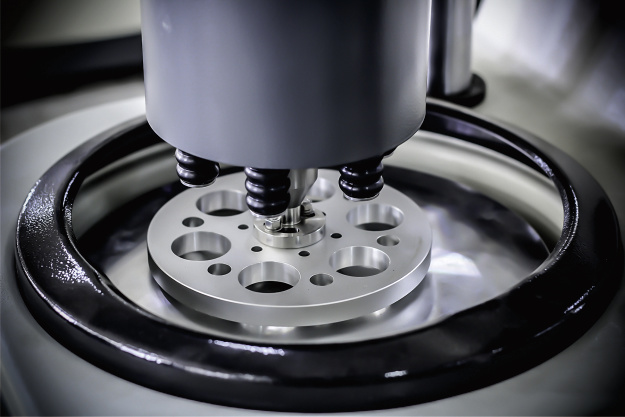

• Six samples, independently pressurized
• PLC independently controls the grinding and polishing disc and sample disc: all grinding and polishing parameters such as speed, grinding and polishing time, rotation direction, and water valve closure are automatically saved and easily accessed;
• Touch screen interface: convenient setting of grinding and polishing parameters, intuitive display of status, and simple operation;
• The grinding and sample disks are both infinitely variable in rotation, and the direction of rotation can be switched. The PLC controls the on/off of the water and abrasive dripper.
• The USB flash drive stores 300 processes, which can be imported and exported
• Grinding head electromagnetic automatic locking, replacing manual grinding head locking wrench, more convenient

Model | LAP-1000 Fully Automatic Metallographic Grinding and Polishing Machine(Multi point Pressure)  | LAP-2000S Fully Automatic Metallographic Grinding and Polishing Machine(Multi point Pressure)
Workstation | Single disk | Dual disk dual control
Working disk diameter | Comes standard with a diameter of 254mm (optional with a diameter of 230mm/203mm) and a magnetic conversion disk system
Speed | 5-1500r/min can switch between forward and reverse steering
Sample disk speed | 30-200 revolutions per minute can be switched between forward and reverse rotation
Manual mode | You can choose 30 sets of parameters, each set of parameters can be set and called separately
Automatic mode | 30 sets of processes, each set containing 10 process parameters (automatically from process 1 to process 10, with each process having an independent set of parameters)

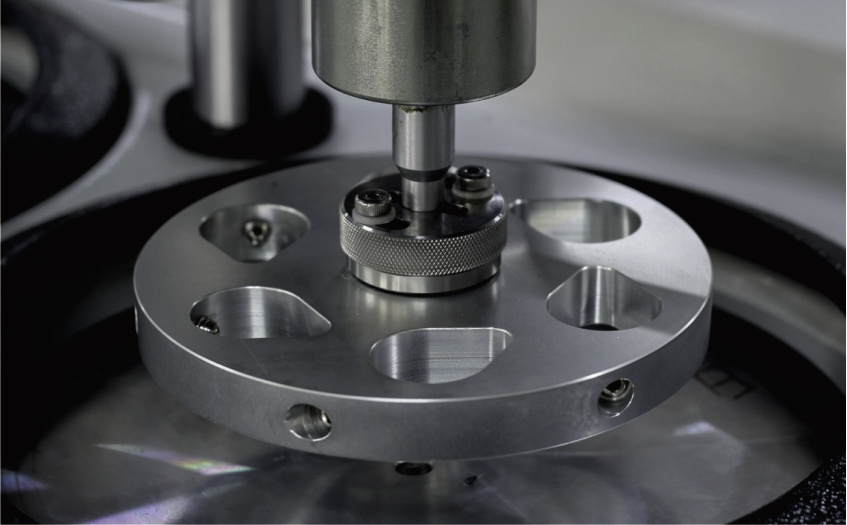

Sample tray | Standard configuration includes six holes with a diameter of 30mm (optional options include six holes with a diameter of 20mm, six holes with a diameter of 40mm, and three holes with a diameter of 50mm, while others can be customized)
Grinding head locking method | Electromagnetic automatic locking
Working gas source pressure | Not less than 0.6MPa
Motor power | 1KW/Dual Disk 2KW
Power Supply | AC220V，50/60Hz，2KW
Dimensions (length * width * height) | 760 x 470 x 700 | 760 x 730 x 700
Weight | 63kg | 74kg

Option

MAGNOMET | Anti-stick disk 5pcs/box Diameter: Φ250mmThe surface is coated with special anti-stick coating, and the sandpaper or polishing cloth with adhesive backing can be pasted on the plate, which is easy to change and leaves no residual glue. Can be used repeatedly.
The disk is used directly on the magnetic disk of BUEHLER or STRUERS;
Replacement of BUEHLER's MagnoMet and MagnoPad
GSC250A | Metallographic sandpaper 100 pcs/bagAbrasive: black silicon carbide
Particle size: 80# 120# 180 # 320 # 600 # 800 # 1000 # 1200 # 1500 # 2000 #
Size: Φ250mm water resistant
With pasted back, sandpaper can be fixed directly on the mill
FT250A | Metallographic polishing fabric 10 pcs/bagVelvet (long pile)/canvas (short pile)/cloth (short pile)/silk (no pile) Φ250mm
Paste back: The fabric can be fixed directly on the mill
DSU | Diamond suspension polishing liquid 500ml/ bottleThe diamond is suspended in the liquid and evenly distributed by watering can or automatic dripParticle size: 0.25, 0.5, 1, 1.5, 2.5, 3, 3.5, 5, 6, 7, 9, 10, 14, 15, 20, 28, 40 microns, suitable for various materials
