1400°C Single Zone Vertical Tube Furnace

1400°C single zone vertical tube furnace is used in the sintering and processing of new materials such as metal materials, ceramic materials, nano materials, semiconductor materials, powder metallurgy and other industries in colleges and universities, scientific research institutes, factories and enterprises, petrochemicals, aerospace and other industries. High temperature heat treatment.

Features

Furnace shell

1. The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
2. The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low
3. Vertical use mode, side open cover structure, easy to operate

Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption

Heating system

1. High-quality metal and ceramic heating element, free heat radiation heating in the furnace cavity, energy saving and high efficiency, long service life
2. The heating element is heated in a ring or on two sides, so as to achieve good uniformity in the furnace
3. A single temperature zone can be independently controlled, and the temperature uniformity is better

Temperature Control Panel

1. PID with SSR/SCR control mode, precise temperature control
2. International standard thermocouple, long service life
3. Equipped with heating indicator light and over-temperature alarm buzzer

Program Controller

1. Advanced controllers that meet complex process requirements
2. Simple and direct operation, flexible programming
3. Programmable 30 program segments
4. Over temperature and fault alarm, automatic safety protection

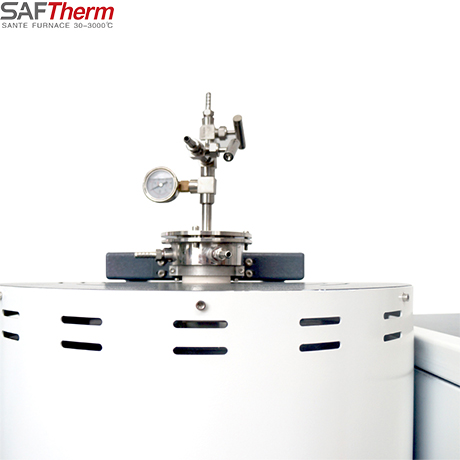

Vacuum Atmosphere Function

1. With 304 stainless steel sealing flange to obtain vacuum or atmosphere in the furnace tube
2. High-quality alumina working tube, or metal or quartz glass working tube can be selected to adapt to different working conditions

Technical Parameter

Item No | Heating Zone（mm） | Tube Size (mm) | Max Temperature | Work Temperature | Voltage | Power | Heating Element | Temperature Accuracy
STGL-40-12 | 300 | Φ40×900 | 1200℃ | 1100℃ | 220V | 1.8KW | HRE | ±1℃
STGL-60-12 | 300 | Φ60×900 | 1200℃ | 1100℃ | 220V | 2.6KW | HRE | ±1℃
STGL-80-12 | 300 | Φ80×900 | 1200℃ | 1100℃ | 220V | 2.6KW | HRE | ±1℃
STGL-100-12 | 300 | Φ100×900 | 1200℃ | 1100℃ | 220V | 2.6KW | HRE | ±1℃
STGL-40-14 | 300 | Φ40×900 | 1400℃ | 1350℃ | 220V | 2KW | SIC | ±1℃
STGL-60-14 | 300 | Φ60×900 | 1400℃ | 1350℃ | 220V | 3KW | SIC | ±1℃
STGL-80-14 | 300 | Φ80×900 | 1400℃ | 1350℃ | 220V | 4KW | SIC | ±1℃
STGL-100-14 | 300 | Φ100×900 | 1400℃ | 1350℃ | 220V | 5KW | SIC | ±1℃
STGL-40-17 | 300 | Φ40×900 | 1700℃ | 1600℃ | 220V | 3KW | MoSi2 | ±1℃
STGL-60-17 | 300 | Φ60×900 | 1700℃ | 1600℃ | 220V | 4KW | MoSi2 | ±1℃
STGL-80-17 | 300 | Φ80×900 | 1700℃ | 1600℃ | 220V | 5KW | MoSi2 | ±1℃
STGL-100-17 | 300 | Φ100×900 | 1700℃ | 1600℃ | 220V | 5KW | MoSi2 | ±1℃

Accessory

1. Furnace body | 1 set
2. Temperature controller | 1
3. Power cord 3 meters | 1
4. Thermocouple | 1
5. Instruction manual | 1
6. Crucible pliers | 1
7. High temperature gloves |  1 pair
