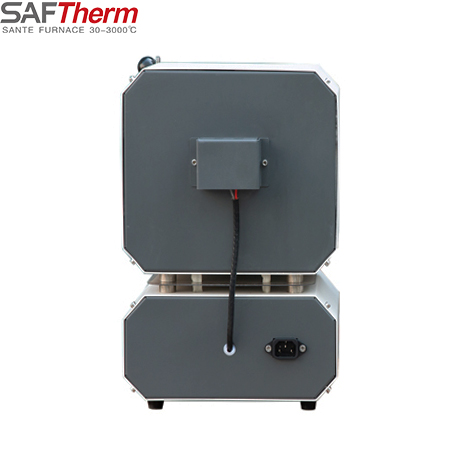

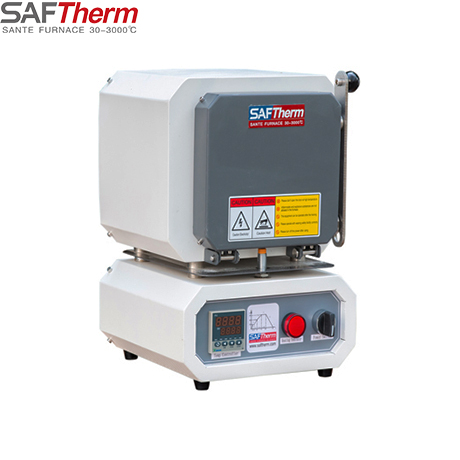

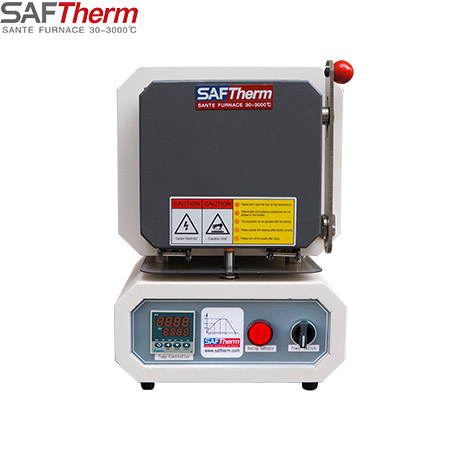

1000°C Small Muffle Furnace

1000℃ Small Benchtop Muffle Furnace product is mainly for the daily application development of the laboratory,high-quality furnace materials and stable temperature control system to ensure the reliability of the experimental data; the product uses high-purity alumina material as the furnace material, and the high-quality alloy resistance wire is used for heating element.

Features

Furnace Shell

1. The shell is made of metal Q235 low carbon steel, and the surface is electrostatically resistant to paint and anti-corrosion
2. Solid metal frame shell structure, low furnace surface temperature
3. Side-opening furnace door structure, the left hinge is fixed, easy to operate

Refractory

Multi-layer thermal insulation design, double-layer light refractory brick lining with strong structure, high-strength stacking and splicing, no asbestos, low heat loss and low energy consumption

Heating System

1. High-quality HRE spiral resistance wire heating element, the resistance wire is wound on the ceramic support tube, free heat radiation heating in the furnace cavity, energy saving, high efficiency and long service life
2. Heating on three sides (left and right sides and the bottom of the furnace), so as to achieve
3. The silicon carbide bottom plate covers and protects the bottom heating element, which has high mechanical strength, good thermal conductivity, and provides horizontal bearing at the same time.

Temperature Control Panel

1. PID cooperates with SCR control mode, the temperature control is accurate
2. International standardized N-type nickel-chromium-silicon thermocouple, with a temperature measurement range of 0-900 °C, and a long service life
3. The furnace door has a safety protection switch for opening the door and power off

Program Controller

1. Advanced controller that adapts to complex process requirements
2. Simple and direct operation, flexible programming
3. Programmable 30 program segments for a single curve
4. Over temperature and fault alarm, automatic safety protection
5. Optional manual air inlet and automatic clamshell exhaust
6. Optional furnace temperature air rapid cooling control unit to achieve rapid cooling within the furnace temperature of 400 °C

Technical Parameter

Model | STM-1-10 | STM-3-12 | STM-6-12 | STM-8-12 | STM-12-12 | STM-18-12 | STM-30-12
Chamber size（W xD xH）mm | 100 x100x100 | 150 x150x150 | 180x230x150 | 200x300x120 | 200 x300x200 | 250 x300x250 | 300 x500x200
Outer size（W xD xH）mm | 250 x240x350 | 430x465x620 | 460x570x660 | 480 x630x630 | 480 x630x710 | 550x635x780 | 600 x870x735
Max temperature | 1200℃
Working temperature | 1100℃
Power supply | 220V/1.2KW | 220V/2.5KW | 220V/3KW | 220V/3KW | 220V/4KW | 220V/6KW | 380V/7.5KW
Heating element | HRE Alloy resistance wire
Chamber material | Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration
Temp.Precision | ±1℃
Termocouple | N Type termocouple
Temperature controller | Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 30 program segments, program temperature rise, program heat preservation, program cooling
Heating rate | 1-25℃/min free adjustment
Furnace structure | Furnace temperature control integrated structure
Equipment protection | Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically
Safety protection | The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators
Furnace shell | High-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder
Quality certificate | ISO9001   CE    SGS   TUV
Standard packing | 1. Furnace body 1 set 2. Temperature controller 1 set 3. Power cord 3 meters 4. Thermocouple 1 set 5. Manual 1 copy 6. Crucible pliers 1 set 7. High temperature gloves 1 pair
Optional | 1. Optional exhaust chimney for evacuation of volatile substances 2. Optional corundum crucible, furnace floor, shed board and other kiln furniture 3. Optional material recorder for online recording of temperature curves

Accessories

1. Furnace body | 1 set
2. Temperature controller | 1
3. Power cord 3 meters | 1
4. Thermocouple | 1
5. Instruction manual | 1
6. Crucible pliers | 1
7. High temperature gloves |  1 pair
